Tilt

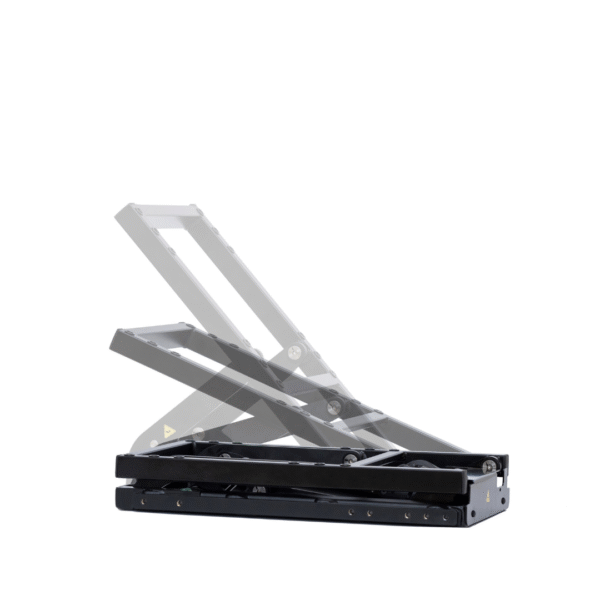

The MBL Tilt System is a universal and compact tilting unit with configurable tilting angles from 30° to 50°. It supports up to 200-260 kg load with a lifetime guarantee of 20.000 cycles (higher loa ... Read more

Product specifications

logo
  • Tilt angles: from 30° to 50°
  • Max load: 200-260 kg load with a lifetime guarantee of 20.000 cycles (higher load – less actuator cycles).
  • Built-in height: 76 mm
  • Limit switches: the system includes a standard built-in actuator equipped with internal limit switches. As an option it can be configured with adjustable external inhibit switch and/or potentiometer feedback for positioning or Hall sensor.
